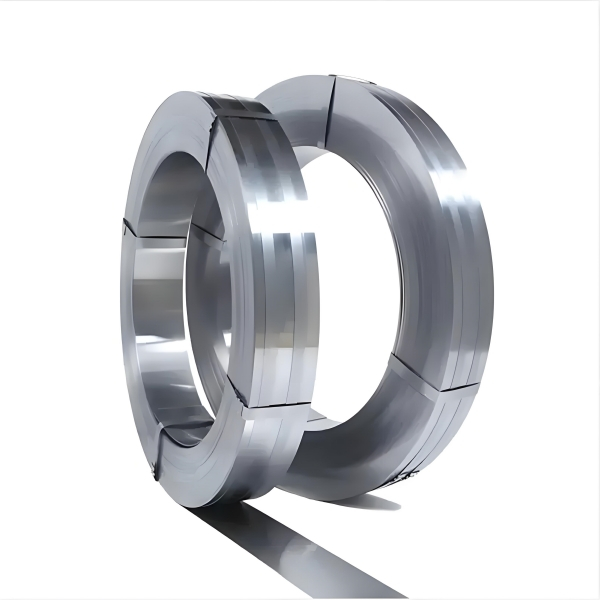

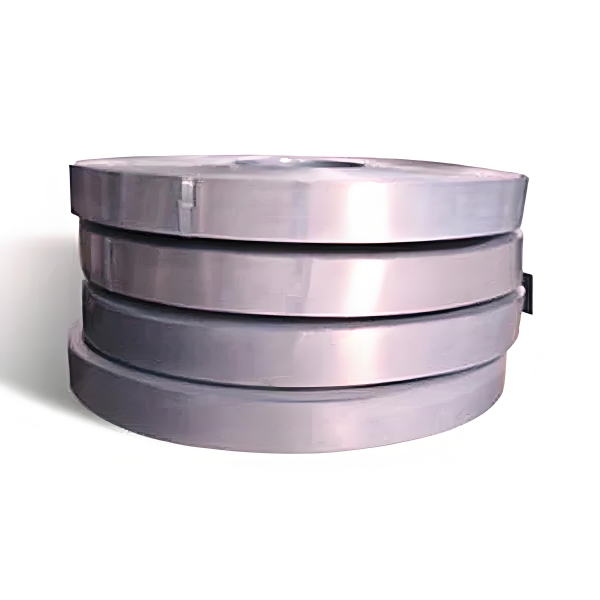

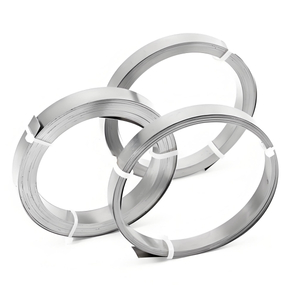

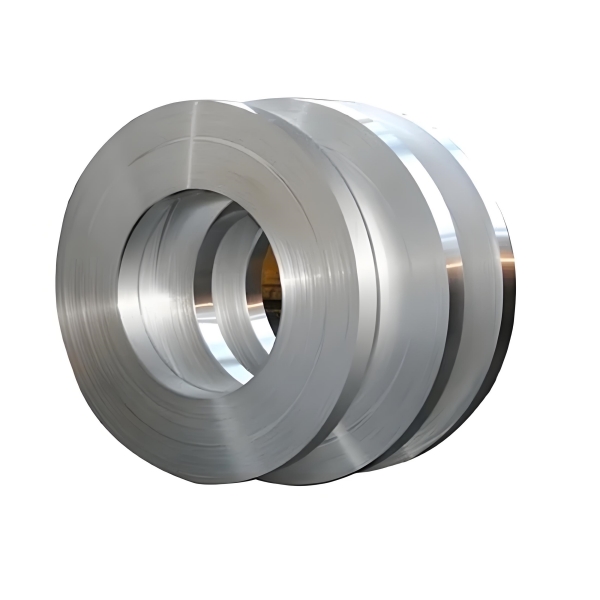

NiCr7030 Nickel Based High Temperature Alloy Strip

Material: NiCr7030, NiCr8020, NiCr6015, NiCr3520, NiCr3020
Cold Rolled Thickness: 0.15-4mm
Hot Rolled Thickness: 4-22mm
Width: ≤200mm
Surface: Bright, Original
Application: Resistor, Heating Element, Resistance Furnace, Household Appliances, Precision Instruments & Meters, etc.

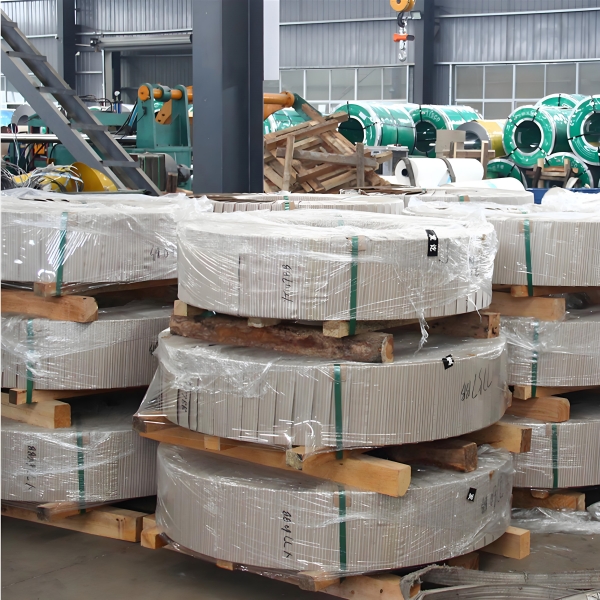

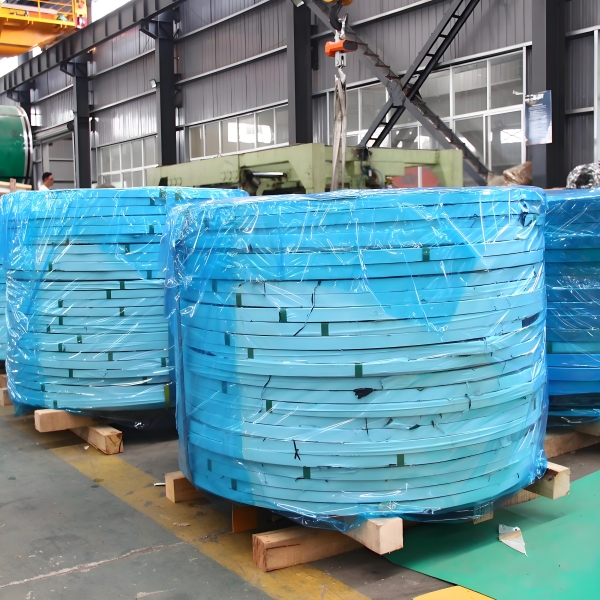

Packing: In Coils - Woven Bag - Pallet or Wooden Case

Product Description

Application

Download

Main Characteristics of NiCr Nichrome Electrical Resistance Heating Alloys

Alloy Nomenclature Performance		Cr20Ni80	Cr30Ni70	Cr15Ni60	Cr20Ni35	Cr20Ni30
Main Chemical Composition	Ni	Rest	Rest	55-61	34-37	30-34
	Cr	20-23	28-31	15-18	18-21	18-21
	Fe	≤1.0	≤1.0	Rest	Rest	Rest
Max. continuous service temp. of element		1200	1250	1150	1100	1100
Resistivity at 20ºC (μΩ·m)		1.09	1.18	1.12	1.00	1.04
Density (g/cm 3 )		8.40	8.10	8.20	7.90	7.90
Thermal conductivity (KJ/m·h·ºC)		60.3	45.2	45.2	43.8	43.8
Coefficient of lines expansion (α×10 -6 /ºC)		18.0	17.0	17.0	19.0	19.0
Melting point (approx.) (ºC)		1400	1380	1390	1390	1390
Elongation at rupture (%)		>20	>20	>20	>20	>20
Micrographic structure		Austenlte	Austenlte	Austenlte	Austenlte	Austenlte
Magnetic properties		Nonmagnetic	Nonmagnetic	Weak Magnetic	Weak Magnetic	Weak Magnetic

1

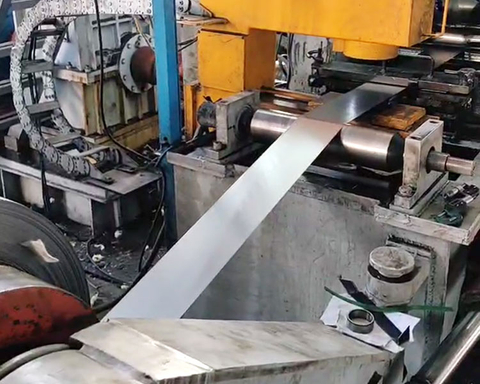

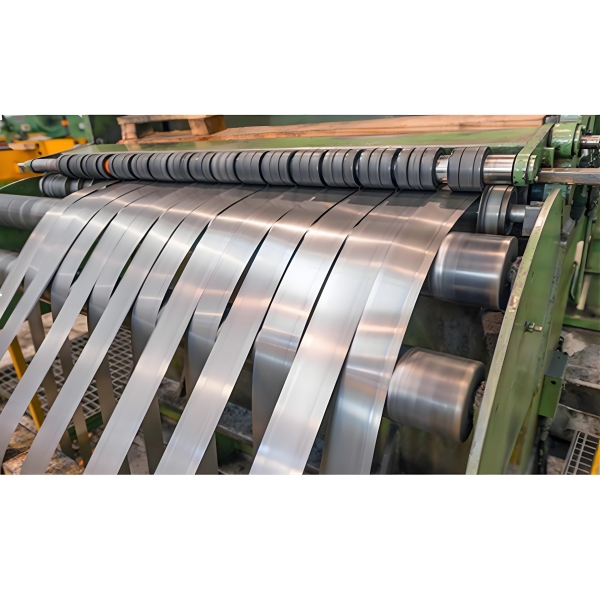

Plate/Strip Cutting

We can cut the sheet plates and strips as you required.

2

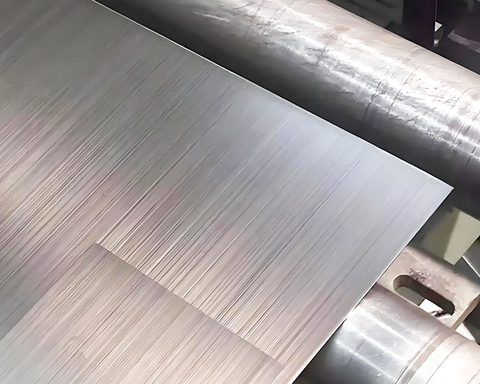

Surface Treatment

We offer different surface treatments like brushed, mirror, painting etc. for your sheet, strips.

3

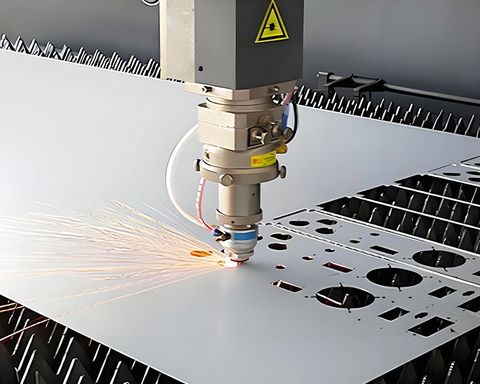

Laser Cutting

We offer laser cutting service for your OEM requirements.

4

Material Process

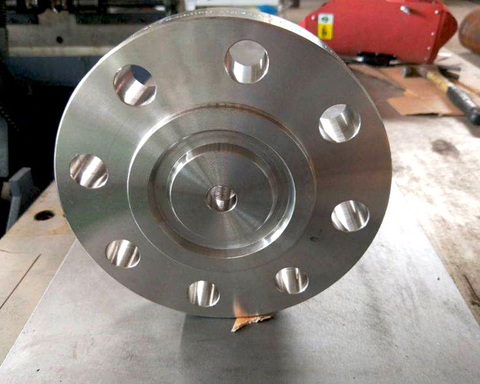

We can make flanges, springs, woven belts, curly furnace wires, etc.

7*24 Hours Service

Have an excellent after-sales service team to ensure that the first time to solve customer after-sales problems.

Reasonable Price

More than 10 precision production line, easy to realize large quantities of goods, to provide you with the best price.

High-temperature nickel-based alloys are widely used in electric resistance heating applications, primarily due to their excellent high-temperature stability, oxidation resistance, corrosion resistance, and favorable electrical resistivity properties.

Electric Heat and Resistance
High-temperature nickel-based alloys are widely used in high-temperature industrial equipment due to their excellent thermal stability, oxidation and corrosion resistance, and superior mechanical strength at elevated temperatures.

High Temperature Industrial Equipment
High-temperature nickel-based alloys are widely used in the petrochemical industry under high-temperature, high-pressure, and highly corrosive environments due to their excellent heat resistance, corrosion resistance, and creep resistance.

Petrochemical Industry
High-temperature nickel-based alloys have become critical materials for modern aerospace engines and high-temperature components due to their exceptional high-temperature strength, oxidation resistance, creep resistance, and fatigue resistance.

Aerospace Industry
