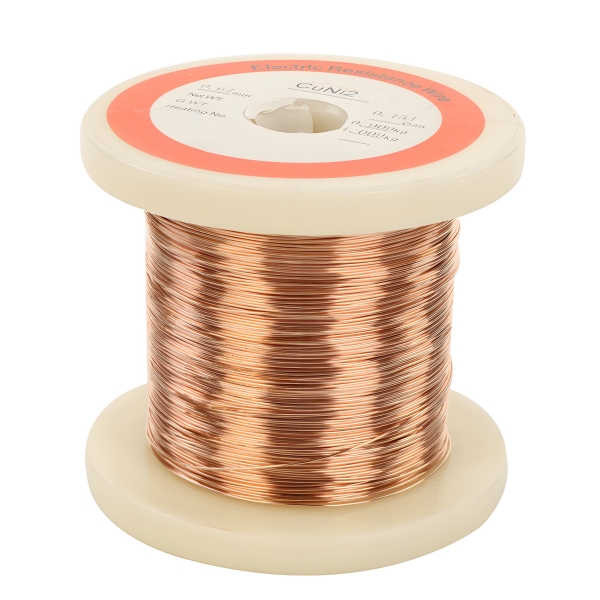

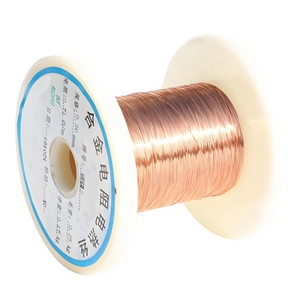

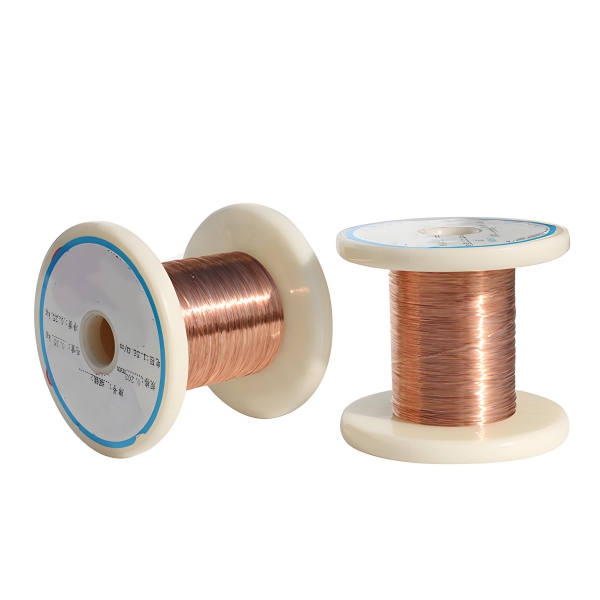

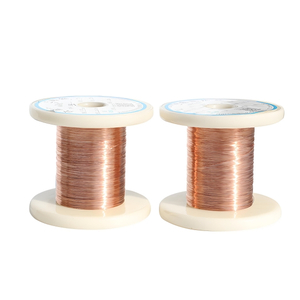

CuNi14 (NC020) Copper-Based Alloy Low Resistance Heating Wire

Material: CuNi14, CuNi1, 2, 6, 8, 10, 19, 23, 30, 34, 44

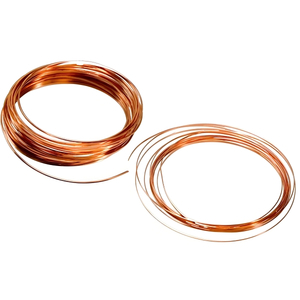

Round Wire: 0.05-10mm

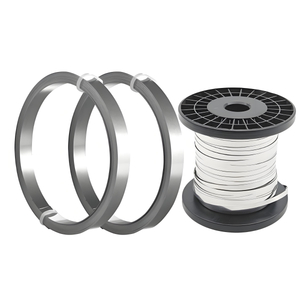

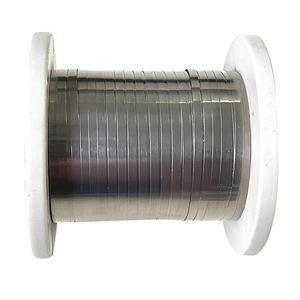

Flat Ribbon: 0.1-1mm x 0.5-5mm
Surface: Bright, Original, Pickling White
State: Soft Annealed, Half Hard, Hard
Application: Resistor, Heating Element, Resistance Furnace, Household Appliances, Precision Instruments & Meters, etc.

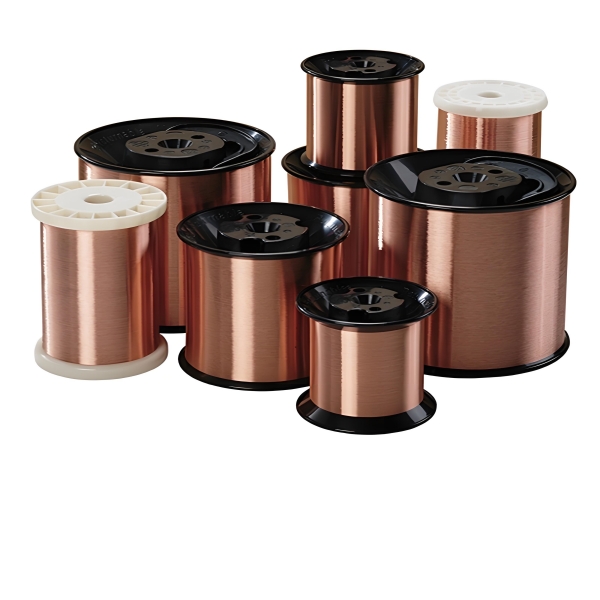

Packing: On Spool / In Coils - Carton / Woven Bag - Pallet or Wooden Case

Product Description

Application

Download

Main Characteristics of Copper-based Low Resistance Heating Alloys

Properties Alloy Nomenclature	Resistivity (μΩ.m) (20 ℃)	Max Working Temperature (℃)	Tensile Strength (Mpa)	Melting Point (℃)	Density (g/cm 3)	TCR x 10 -6 / ℃ (20~600℃)	EMF vs Cu (μV / ℃) (0~100℃)
NC003 (CuNi1)	0.03	200	210	1085	8.9	<100	-8
NC005 (CuNi2)	0.05	200	220	1090	8.9	<120	-12
NC010 (CuNi6)	0.10	220	250	1095	8.9	<60	-18
NC012 (CuNi8)	0.12	250	270	1097	8.9	<57	-22
NC015 (CuNi10)	0.15	250	290	1100	8.9	<50	-25
NC020 (CuNi14)	0.20	300	310	1115	8.9	<30	-28
NC025 (CuNi19)	0.25	300	340	1135	8.9	<25	-32
NC030 (CuNi23)	0.30	300	350	1150	8.9	<16	-34
NC035 (CuNi30)	0.35	350	400	1170	8.9	<10	-37
NC040 (CuNi34)	0.40	350	400	1180	8.9	0	-39
NC050 (CuNi44)	0.50	400	420	1200	8.9	<-6	-43

7*24 Hours Service

Have an excellent after-sales service team to ensure that the first time to solve customer after-sales problems.

Reasonable Price

More than 10 precision production line, easy to realize large quantities of goods, to provide you with the best price.

1

Plate/Strip Cutting

We can cut the sheet plates and strips as you required.

2

Surface Treatment

We offer different surface treatments like brushed, mirror, painting etc. for your sheet, strips.

3

Laser Cutting

We offer laser cutting service for your OEM requirements.

4

Material Process

We can make flanges, springs, woven belts, curly furnace wires, etc.
