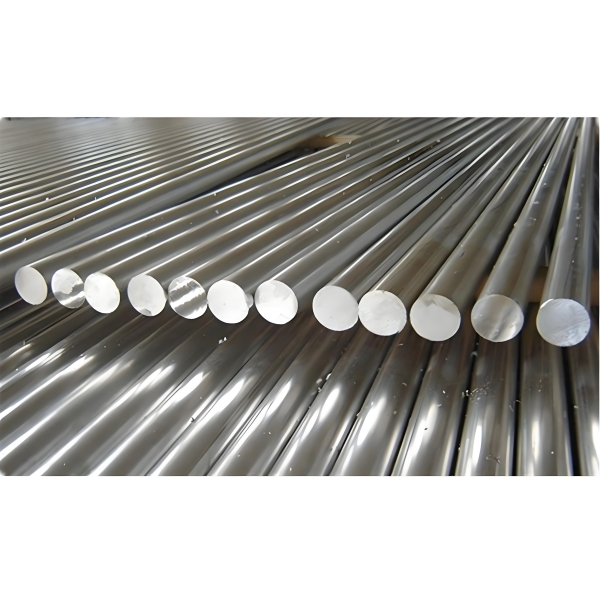

4J33 Nickel Based Precision Alloy Steel Bar


Availability:

Quantity:



Inquire Add to Basket

Material: 4J33, 1J22, 1J50, 1J85, 1J79, 4J36, 4J50, 4J29, 4J52
Hot Rolled Dia: 8-120mm
Cold Draw Dia: ≤50mm
Forged Dia: 38-350mm
Surface: Bright, Original
Application: Resistor, Heating Element, Resistance Furnace, Household Appliances, Precision Instruments & Meters, etc.
Packing: Wooden Case

Precision Alloy Nickel Based Alloy Precision Alloy Bar Nickel Based High Temperature Alloy 4J33 Alloy Steel Bar Steel Alloy Bar

Product Description

Application

Download

4J33 Nickel Based Precision Alloy Steel Bar

4J33
Chemical Composition %	Ni: 32.1-33.6	P: ≤0.02	Fe: Margin
	Mn: ≤0.50	S: ≤0.02	Si: ≤0.3
	C: ≤0.03	Co: 14.0-15.2
Application Area	Used for making iron nickel cobalt alloy strips, bars, plates, and pipes that are matched and sealed with hard glass, used for emission tubes, oscillation tubes, ignition tubes, transistors, as well as electric vacuum devices such as tube sealing plugs and relay shells

Alloy Grade

Chemical Composition %

C

P

S

Mn

Si

Cu

Cr

Mo

Ni

Co

Fe

Remark

1J36

≤0.03

≤0.02

≤0.06

≤0.20

-

35.0-37.0

Margin

1J50

≤0.03

≤0.02

0.30-0.60

0.15-0.30

≤0.20

-

49.0-50.5

-

Margin

1J79

≤0.03

≤0.02

0.60-1.10

0.30-0.50

≤0.20

3.80-4.10

78.5-80.0

Margin

1J80

≤0.03

≤0.02

0.60-1.10

1.10-1.50

≤0.20

2.60-3.00

-

79.0-81.5

-

Margin

3J9

0.02-0.26

≤0.03

≤0.02

1.80-2.20

1.3-1.70

19.0-20.5

1.60-1.85

9.0-10.5

Margin

4J29

≤0.03

≤0.02

≤0.50

≤0.30

≤0.20

28.5-29.5

16.8-17.8

Margin

4J28

≤0.12

≤0.02

≤1.00

≤0.90

27.0-29.0

≤0.50

Margin

N≤0.02

4J42

≤0.05

≤0.02

≤0.80

≤0.30

41.5-42.5

≤1.0

Margin

Al≤0.10

4J50

≤0.05

≤0.02

≤0.80

≤0.30

49.5-50.5

Margin

Al≤0.10

In 4J29: Al: ≤0.10% , Mg: ≤0.10% , Zr: ≤0.10% , Ti: ≤0.10%，Al+Mg+Zr+Ti: ≤0.20%
