Home » Products » Precision Alloy » 1J50 Nickel Based Precision Alloy Wire

Product Category

Precision Alloy Wire, 1J50 Alloy Wire, Nickel Based Alloy

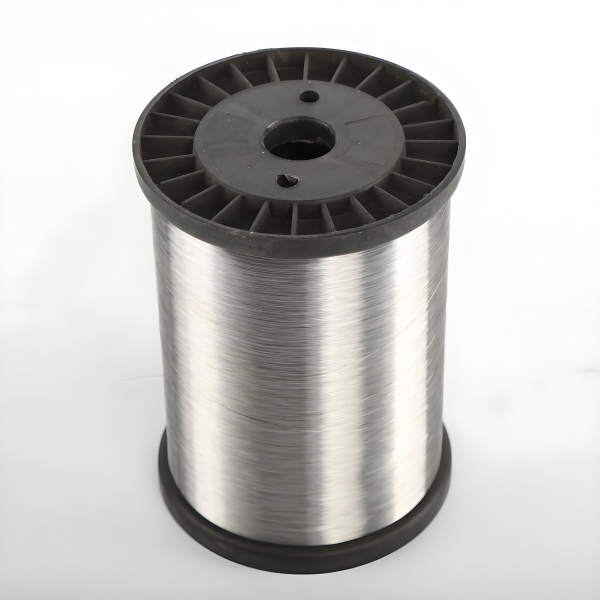

1J50 Nickel Based Precision Alloy Wire


Availability:

Quantity:



Inquire Add to Basket

Material: 1J50, 1J22, 1J79, 1J85, 4J29, 4J36, 4J50, 4J33, 4J52
Round Wire: 0.2-15mm
Flat Ribbon: 0.1-1mm x 0.5-5mm
Surface: Bright, Original, Pickling White
State: Soft Annealed, Half Hard, Hard
Application: Resistor, Heating Element, Resistance Furnace, Household Appliances, Precision Instruments & Meters, etc.
Packing: On Spool / In Coils - Carton / Woven Bag - Pallet or Wooden Case

Precision Alloy Nickel Based Alloy Precision Alloy Wire 1J50 Alloy Alloy Wire Nickel Based High Temperature Alloy

Product Description

Application

Download

1J50 Nickel Based Precision Alloy Wire

1J50
Chemical Composition %	Ni: 49-50.5	P: ≤0.02	Fe: Margin
	Mn: 0.3-0.6	S: ≤0.02	Cu: ≤0.20
	Si: 0.15-0.30	C: ≤0.03
Density g/cm3	8.2
Application Area	Various transformers, relays, electromagnetic clutches, earphone diaphragms, gas safety valves, gyroscopes, automatic synchronous motors, electronic watch micromotors used in medium magnetic fields

Alloy Grade

Chemical Composition %

C

P

S

Mn

Si

Cu

Cr

Mo

Ni

Co

Fe

Remark

1J36

≤0.03

≤0.02

≤0.06

≤0.20

-

35.0-37.0

Margin

1J50

≤0.03

≤0.02

0.30-0.60

0.15-0.30

≤0.20

-

49.0-50.5

-

Margin

1J79

≤0.03

≤0.02

0.60-1.10

0.30-0.50

≤0.20

3.80-4.10

78.5-80.0

Margin

1J80

≤0.03

≤0.02

0.60-1.10

1.10-1.50

≤0.20

2.60-3.00

-

79.0-81.5

-

Margin

3J9

0.02-0.26

≤0.03

≤0.02

1.80-2.20

1.3-1.70

19.0-20.5

1.60-1.85

9.0-10.5

Margin

4J29

≤0.03

≤0.02

≤0.50

≤0.30

≤0.20

28.5-29.5

16.8-17.8

Margin

4J28

≤0.12

≤0.02

≤1.00

≤0.90

27.0-29.0

≤0.50

Margin

N≤0.02

4J42

≤0.05

≤0.02

≤0.80

≤0.30

41.5-42.5

≤1.0

Margin

Al≤0.10

4J50

≤0.05

≤0.02

≤0.80

≤0.30

49.5-50.5

Margin

Al≤0.10

In 4J29: Al: ≤0.10% , Mg: ≤0.10% , Zr: ≤0.10% , Ti: ≤0.10%，Al+Mg+Zr+Ti: ≤0.20%

7*24 Hours Service

Have an excellent after-sales service team to ensure that the first time to solve customer after-sales problems.

Reasonable Price

More than 10 precision production line, easy to realize large quantities of goods, to provide you with the best price.

1

Plate/Strip Cutting

We can cut the sheet plates and strips as you required.

2

Surface Treatment

We offer different surface treatments like brushed, mirror, painting etc. for your sheet, strips.

3

Laser Cutting

We offer laser cutting service for your OEM requirements.

4

Material Process

We can make flanges, springs, woven belts, curly furnace wires, etc.

High-temperature nickel-based alloys are widely used in electric resistance heating applications, primarily due to their excellent high-temperature stability, oxidation resistance, corrosion resistance, and favorable electrical resistivity properties.

Electric Heat and Resistance
High-temperature nickel-based alloys are widely used in high-temperature industrial equipment due to their excellent thermal stability, oxidation and corrosion resistance, and superior mechanical strength at elevated temperatures.

High Temperature Industrial Equipment
High-temperature nickel-based alloys are widely used in the petrochemical industry under high-temperature, high-pressure, and highly corrosive environments due to their excellent heat resistance, corrosion resistance, and creep resistance.

Petrochemical Industry
High-temperature nickel-based alloys have become critical materials for modern aerospace engines and high-temperature components due to their exceptional high-temperature strength, oxidation resistance, creep resistance, and fatigue resistance.

Aerospace Industry
