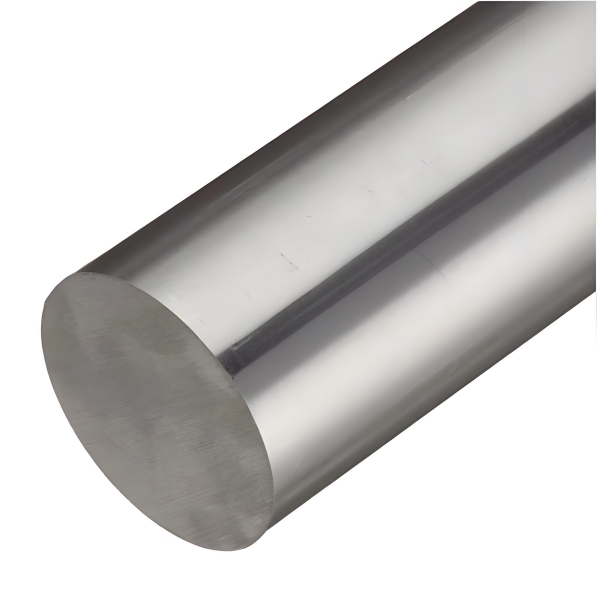

Monel 400 High Temperature Nickel Based Super Alloy Steel Bar
Monel 400（UNS N04400 / W.Nr.2.4360）
Chemical Composition %
Ni: ≥63
Fe: ≤2.5
Cu: 28-34
Mn: ≤2
C: ≤0.3
Si: ≤0.5
S: ≤0.024
Melting Point ℃
1300-1390
Density g/cm3
8.83
ExecutiveStandards
ASTM: B127
AMS: 4544
Application Area
Seamless water pipes, steam pipes, seawater exchangers and evaporators, pumps and valves for crude oil distillation and hydrochloric acid production equipment in power plants
Designations: AWS 040
Specifications: AMS 4730 , ASTM B164
Alloy Details
Density
Melting Point
Coefficient of Expansion
Modulus of Rigidity
Modulus of Elasticity
8.8 g/cm³
1350 °C
13.9 μm/m °C (20 – 100 °C)
65.3 kN/mm²
173 kN/mm²
0.318 lb/in³
2460 °F
7.7 x 10-6 in/in °F (70 – 212 °F)
9471 ksi
25092 ksi
Heat treatment of finished parts
Condition as supplied by AWI
Type
Temperature
Time
Cooling
Annealed or Spring Temper
Stress Relieve
300 – 320 °C (570 – 610 °F)
0.5 – 1 Hr
Air
Properties
Annealed
Approx. tensile strength
<600 N/mm²
<87 ksi
Approx. operating temperature
-200 to +230 °C
-330 to +445 °F
Spring Temper
Approx. tensile strength
800 – 1100 N/mm²
116 – 160 ksi
Approx. operating temperature
-200 to +230 °C
-330 to +445 °F
The above information is typical. If you have special requirement please ask.
Have an excellent after-sales service team to ensure that the first time to solve customer after-sales problems.
Reasonable Price
More than 10 precision production line, easy to realize large quantities of goods, to provide you with the best price.
1
Plate/Strip Cutting
We can cut the sheet plates and strips as you required.
2
Surface Treatment
We offer different surface treatments like brushed, mirror, painting etc. for your sheet, strips.
3
Laser Cutting
We offer laser cutting service for your OEM requirements.
4
Material Process
We can make flanges, springs, woven belts, curly furnace wires, etc.
High-temperature nickel-based alloys are widely used in electric resistance heating applications, primarily due to their excellent high-temperature stability, oxidation resistance, corrosion resistance, and favorable electrical resistivity properties.
Electric Heat and Resistance
High-temperature nickel-based alloys are widely used in high-temperature industrial equipment due to their excellent thermal stability, oxidation and corrosion resistance, and superior mechanical strength at elevated temperatures.
High Temperature Industrial Equipment
High-temperature nickel-based alloys are widely used in the petrochemical industry under high-temperature, high-pressure, and highly corrosive environments due to their excellent heat resistance, corrosion resistance, and creep resistance.
Petrochemical Industry
High-temperature nickel-based alloys have become critical materials for modern aerospace engines and high-temperature components due to their exceptional high-temperature strength, oxidation resistance, creep resistance, and fatigue resistance.
With 20 years of experience and 3 factories’ production and processing support, we are proud to be professional Manufacturer and Supplier of nickel-base super alloy in shape of wire, ribbon, bar, plate, strip etc.
